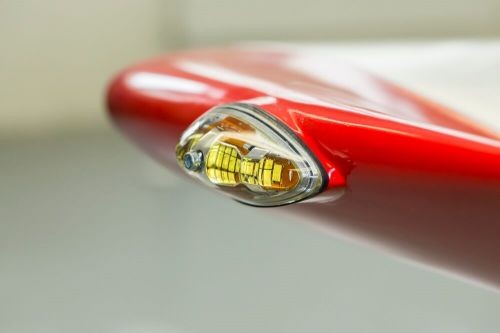

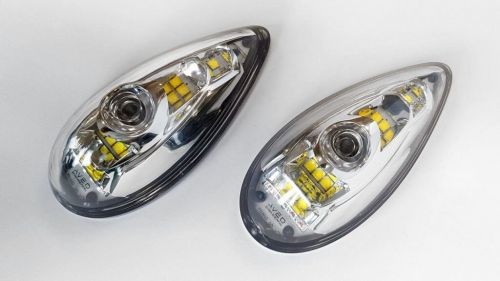

Aircraft Aveo Ultra Navigation Position Strobe LED Light

Overview

At only 34 millimeters in height (1.34 inch) the new Ultra DayLite is a value light that does not sacrifice anything in performance or standards as other economy-priced lights offered by the competition. Our exclusive and highly advanced optics and chrome reflector system, our unmatched power and led management circuitry and our famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category! NOT APPROVED FOR INSTALLATION ON CERTIFIED AIRCRAFT THIS IS NOT A TSO CERTIFIED LIGHT

	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

• 3-in-1 Navigation/Position/Strobe

• Lower, narrow, and shorter than other industry lights

• Lightweight at 127 grams

• 9-36 volt DC input range

• Unmatched circuit technology

• Limited Warranty - Product must be registered within 30 days of purchase Here

Specifications

• Dimensions (mm): 100 mm x 46.2 mm x 34.1 mm

• Dimensions (inches): 3.94“ x 1.819“ x 1.34“

• Weight: 96 g / 3.386 oz

• Operating Voltage Range: 9 – 36 VDC

• Input Power

• P/N: AVE-WPSTG-64T Mod(4)

• Nav Green / Rear White Position: 9 V / 0.56 A : 5.0 W

• 14 V / 0.36 A : 5.1 W

• 28 V / 0.19 A : 5.4 W

• 36 V / 0.15 A : 5.5 W

• Input Power

• P/N: AVE-WPSTG-64T Mod(4)

• Strobe: 9 V / 6.33 A : 57.0 W

• 14 V / 2.92 A : 40.9 W

• 28 V / 1.36 A : 38.1 W

• 36 V / 1.06 A : 38.2 W

• Input Power

• P/N: AVE-WPSTR-64T Mod(4)

• Nav Red / Rear White Position: 9 V / 0.55 A : 4.9 W

• 14 V / 0.36 A : 5.0 W

• 28 V / 0.19 A : 5.3 W

• 36 V / 0.16 A : 5.6 W

• Input Power

• P/N: AVE-WPSTR-64T Mod(4)

• Strobe: 9 V / 6.49 A : 58.4 W

• 14 V / 2.97 A : 41.6 W

• 28 V / 1.38 A : 38.5 W

• 36 V / 1.07 A : 38.5 W

• Repetition Rate of Strobe: 50 cycles per minute

• Supplied mounting screw:

• Only supplied hardware can be used to install! M5x45 mm (DIN7984)

• Torque requirement for screw M5x45mm: 1.2 Nm

• Ambient Temperature: from -55°C to +85°C

• from -55°F to +185°F

• Overheat Protection: Yes (+85°C / +185°F)

• Reverse Polarity Protection: Yes

• Transient Voltage: 80V at 2sec max, both polarities

• Under-Voltage Protection (lockout): Yes (9V)

• Over-Voltage Protection (lockout): Yes (36V)

• Waterproof, Dust-proof, Shock-proof, Vibration-proof: Yes
